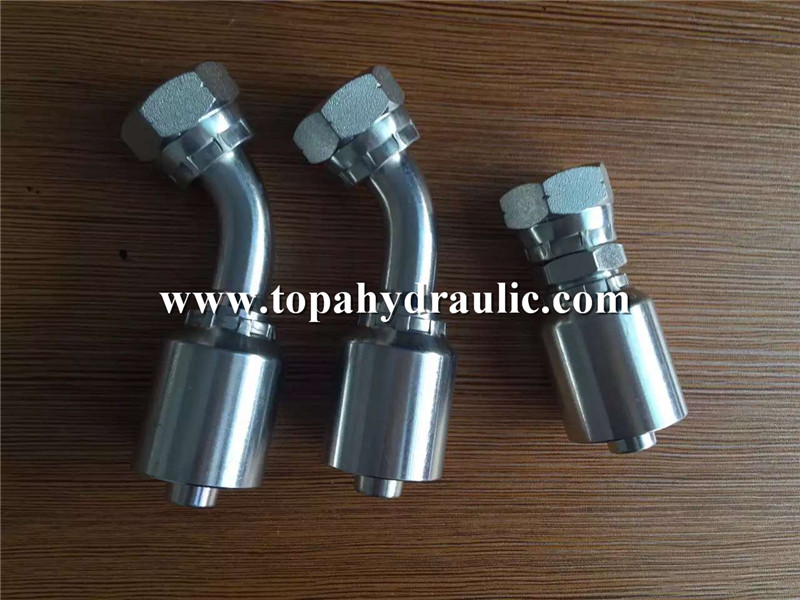

one piece industrial flexible hose Hydraulic Fittings
Basic Info
Model No.: 24241RW
Certification: ISO9001
Pressure: High Pressure
Work Temperature: High Temperature
Thread Type: Internal Thread
Installation: Sleeve Type
Material: Carbon Steel
Type: Other
Size: DN 6MM To 50MM
Surface Treatment: Zinc Plated
Suitable Medium: Water/Oil/Gas
Materials: Carbon Steel
Color: White Or Yellow
Connection: Female Or Male
Shape: Equal Or Elbow
Working Temperature: -40 °C~100°C
Standard: One Picec Hose Fitting
Name: One Piece Industrial Flexible Hose Hydraulic Fitti
Additional Info
Packaging: carton and wooden case
Productivity: 500000 pcs per month
Brand: TOPA
Transportation: Ocean,Land,Air,DHL/UPS/TNT
Place of Origin: Heibei,China
Supply Ability: 500000 pcs per month
Certificate: Hydraulic Fittings ISO
HS Code: 73071900
Port: Tianjin,Ningbo,Shanghai
Product Description
one piece industrial flexible hose Hydraulic Fittings
1. Competitive prices, which make our flexible hose hydraulic fittings widely welcomed in Europe, American markets.
2. ISO:9001:2008 quality management system.
3. Inventory:a large amount of stock, which can afford fast delivery for many items of flexible hose Hydraulic Fittings.
4. Good aftersale services of flexible hose hydraulic fittings, which make us maintain a good relationship with our customers.
Product Description
Pneumatic Hydraulic Fitting is a part used to connect hoses, pipes, and tubes in hydraulic systems. Hydraulic equipment generally operates under high pressures and is often not a fixed system. Consequently, flexible hose hydraulic fittings need to be strong, versatile, and reliable to operate safely and effectively in their respective applications. These flexible hose hydraulic fittings typically adhere to strict standards which dictate Adapter construction, dimensions, and pressure ratings.
|
|
|
HOSE BORE |
DIMENSIONS |
|||
|
PART NO. |
THREAD T |
DN |
DASH |
L |
H |
S1 |
|
24241-04-04RW |
9/16″X18 |
6 |
04 |
45 |
21 |
19 |
|
24241-04-05RW |
9/16″X18 |
8 |
05 |
45 |
21 |
19 |
|
24241-04-06RW |
9/16″X18 |
10 |
06 |
49.6 |
23.7 |
19 |
|
24241-06-04TRW |
11/16″X16 |
6 |
04 |
38 |
14.7 |
22 |
|
24241-06-05TRW |
11/16″X16 |
8 |
05 |
39.5 |
15.7 |
22 |
|
24241-06-06RW |
11/16″X16 |
10 |
06 |
52.8 |
27 |
22 |
|
24241-08-06TRW |
13/16″X16 |
10 |
06 |
44.7 |
18.7 |
27 |
|
24241-08-08RW |
13/16″X16 |
12 |
08 |
63.3 |
30.4 |
27 |
|
24241-08-10RW |
13/16″X16 |
16 |
10 |
70.8 |
31.6 |
27 |
|
24241-10-08TRW |
1/4″X14 |
12 |
08 |
57.5 |
24 |
30 |
|
24241-10-10RW |
1/4″X14 |
10 |
10 |
75 |
35 |
30 |
|
24241-12-08TRW |
1.3/16″X12 |
12 |
08 |
54.9 |
23.6 |
36 |
|
24241-12-10TRW |
1.3/16″X12 |
16 |
10 |
64.5 |
25 |
36 |
|
24241-12-12RW |
1.3/16″X12 |
20 |
12 |
79.5 |
39.5 |
36 |
|
24241-12-16RW |
1.3/16″X12 |
25 |
16 |
90 |
40.6 |
36 |
|
24241-16-12TRW |
1.7/16″X12 |
20 |
12 |
74 |
29 |
41 |
|
24241-16-14TRW |
1.7/16″X12 |
22 |
14 |
76 |
30 |
41 |
|
24241-16-16TRW |
1.7/16″X12 |
25 |
16 |
77.3 |
27.9 |
41 |
|
24241-20-16TRW |
1.11/16″X12 |
25 |
16 |
79.5 |
30 |
50 |
|
24241-24-20TRW |
2″X12 |
32 |
20 |
95 |
35 |
60 |
|
24241-24-24TRW |
2″X12 |
40 |
24 |
109 |
39.5 |
60 |
Company Information
Our flexible hose hydraulic fittings products include a wide range of standard :Eaton standard, Parker standard, American standard ,custom, and jump size fittings from 1/8″ to 2″ and so on. Virtually any straight or shape style fitting whether tube fitting, pipe fitting, or swivel fitting adapter can be machined in NPT, JIC, ORFS, BSP, BSPT, BSPP,or S.A.E. thread forms and all are meet REACH and ROHS compliant in surface treatments.
Packaging & Shipping
Packing Details :
1.Our flexible hose hydraulic fittings have threads cap, can protect the goods,ensure you can receive goods with all perfect threads
2.Each flexible hose hydraulic fittings will be covered by plastic cover.
3.Then package by carton.
4.48-52 small cartons flexible hose hydraulic fittings are in a wooden pallet.
5.Our package is perfect, protect flexible hose hydraulic fittings clash in transport.
6.Of course, we also allow to do customized package.
Delivery Details :
1.For the sample, we need 3 work days to prepare, delivery by express.
2.For the big order, Generally it is 2-10 days if the goods are in stock. no stock, it is according to order quantity.
3.Usually for 1 20FT, maybe 45 works day.
Workshop
1.Advanced production equipment/Advanced production line and technology
2.Response within 12 hours
3.Experienced and well-trained engineers and salesmen
4.Supporting 200 OEM Clients in Europe and North America
Application
Applications: petrochemical industry, the aerospace, railway, automobile manufacturing, vessel, engineering machinery, construction machinery, water conservancy construction, port machinery, wind power generation, special vehicle, printing machinery, engine, metallurgical machinery, mining machinery, Injection molding food machinery, agricultural machinery, machine tool manufacturing, hydraulic system, textile machinery, etc.
Product Inspect
We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
Why choose us
1)Company strength:
Work shop: 50,000 square meter; Employees: 350; Production capacity monthly: 1,500,000 set of hydraulic fittings; OEM project: Meritor
2) Quality policy:
We strictly comply with quality management systems of ISO9001/TS16949. Quality Guarantee: 100% strict inspection on each order before shipment
3 )Service:
Rapid , Effective , Professional , Kind
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge,freight charge is for your account. If you make order, we could return freight charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Can you customize products for your customers?
A: Yes, Customized service is one of our core business.
contact us
Looking for ideal Flexible Hose Hydraulic Fittings Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the One Piece Flexible Hose Hydraulic Fittings are quality guaranteed. We are China Origin Factory of Industrial Flexible Hose Hydraulic Fittings. If you have any question, please feel free to contact us.
Product Categories : Hydraulic Hose Fitting > One Piece Hose Fitting
