Code 62 Split 6000psi Pressed Sae Flange Clamp Flange Sae Flange Flange

Short Description:

Code 62 Split 6000psi Hydraulic Stainless Steel Universal Pressed Sae Flange Clamp Flange Sae Flange Flange

Black metal split flange is commonly used world wide to connect larger sizes of hose and tubing (3/4” to 3”) in fluid power systems.
Carbon steel split flange come in two pressure classes. The standard series, Code 61, which goes to 3,000 psi and the high pressure series, Code 62, where all the sizes are rated at 6,000 psi.


Product Detail

FAQ

Code 62 Split 6000psi Pressed Sae Flange Clamp Flange Sae Flange Flange

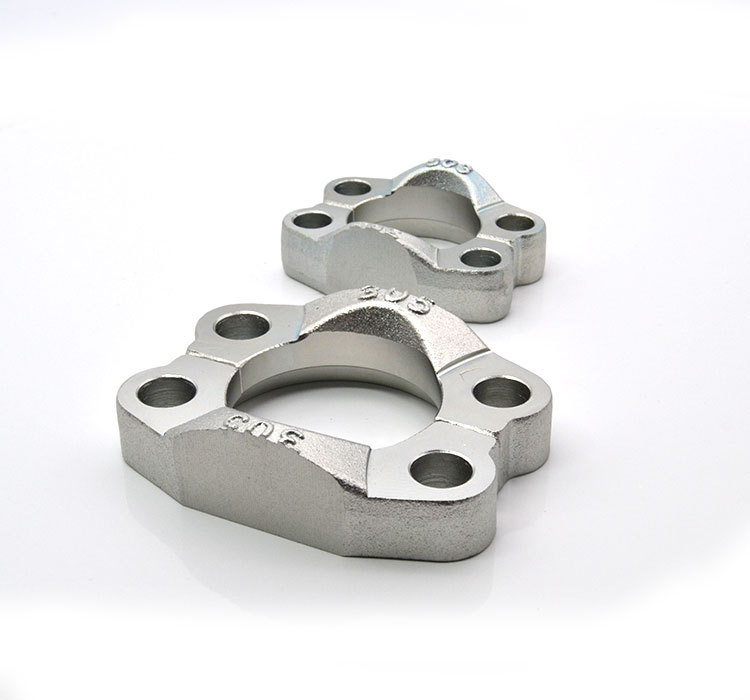

Flang sae j518 clamp is belong to hydraulic flange system, it used to connect hydraulic flanged tube, hydraulic hose assemblies and piping. You can find this flange connection to hydraulic cylinder in excavator and loader.

black metal split flange

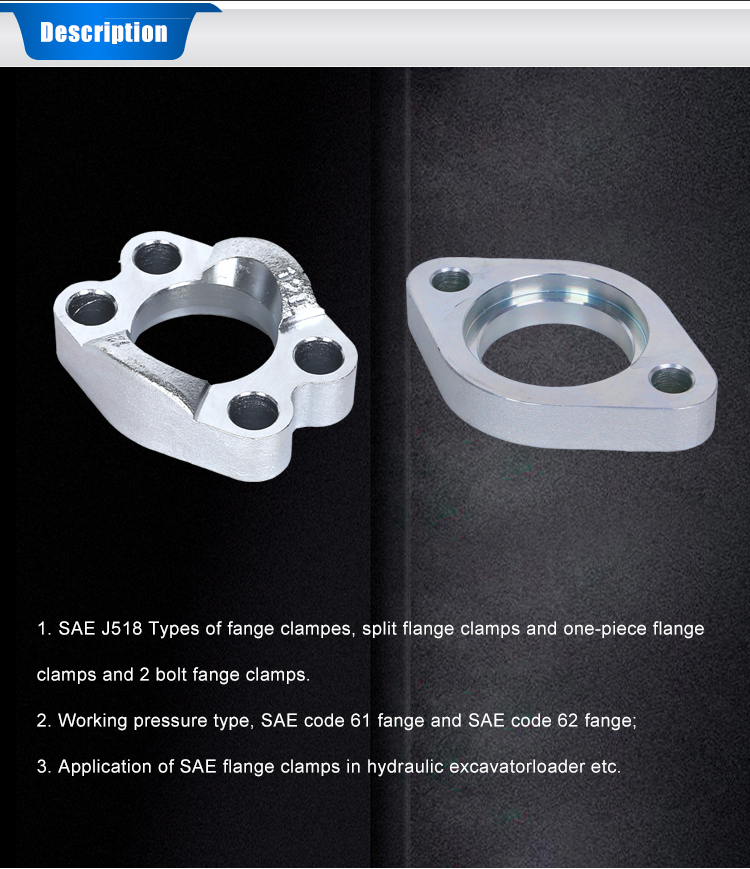

Sae flange clamp Description

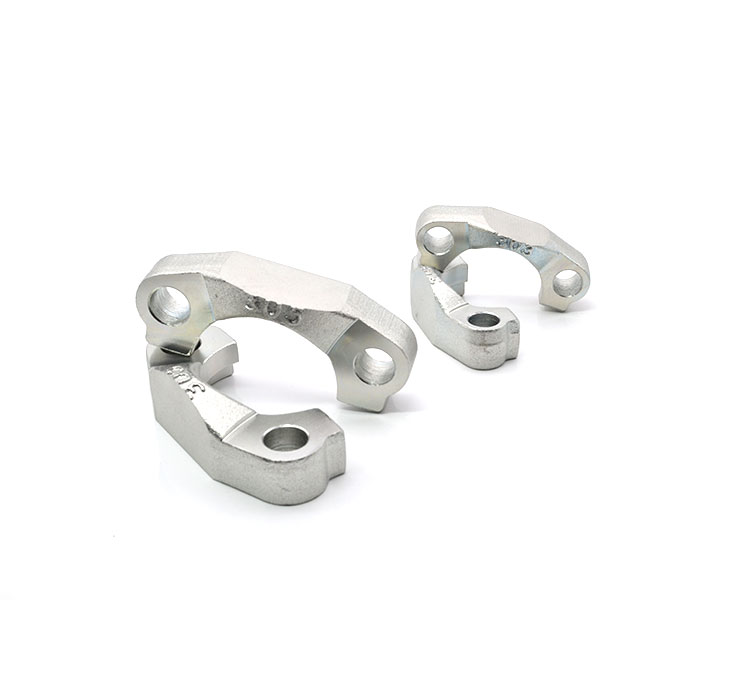

Flange Clamps – Clamps are used for providing the holdingpower to the 4-bolt flange connection. They are offered in split and captive (one-piece) versions. Flange clamps are forged for higher strength and durability.

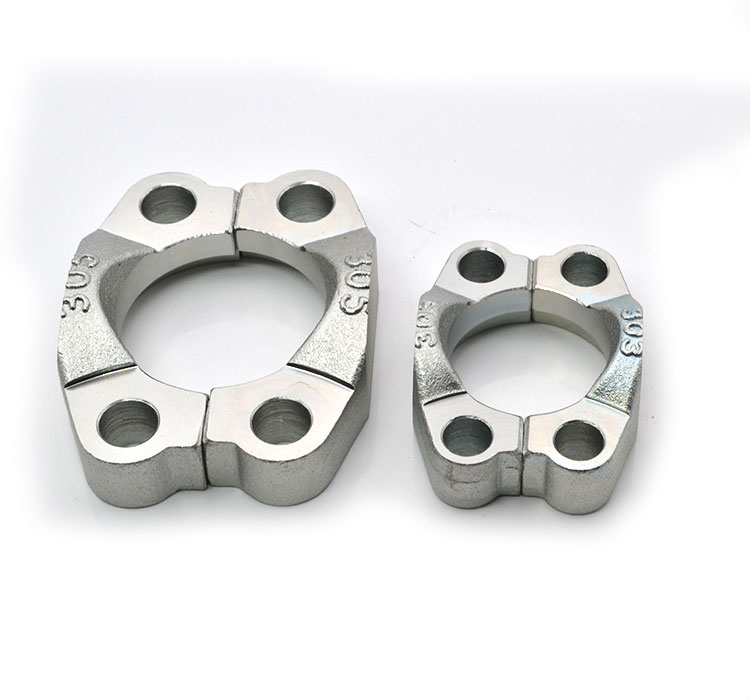

split flange

Pipe flange clamp Applications

1″ sae 62 afc-m flanges widely applied in various hydraulic systems in the following fields of industry: Industrial Hydraulics, Injection Moulding Machinery, Aluminium Die-Casting Machinery, Sintering Machinery, Steel Mills, Hydraulic Presses, Paper Processing, Mobile Hydraulics, Building Machinery, Agricultural Machinery, Forestry Machinery, Lifting and Material Handling Equipment…

flange clip

Flange clamps Advantage
sae flange clamp flange sae flange flange are used as a reliable alternative to regular pipe and tube connectors. Their biggest advantage is the considerably higher pressure resistance for many sizes and the continuous pressure level of the High Pressure Series which can operate with maximum working pressures of up to 400 bar.

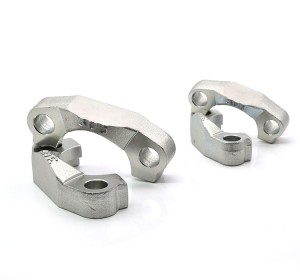

sae j518 split flange clamps 3000psi

About US

Topa is the professional hydraulic fitting and hose solution provider. We not only sell hydraulic fitting and hose, but also provide solutions to customers.

Our main products are hydraulic flange clamp, hydraulic fittings, hydraulic hose, adapters and related products.

In TOPA you will find exactly products you want. We are a one-stop manufacturer for all your hydraulic products needs!

carbon steel split flange

Stainless steel flange clamps Package
1. flange clamp sae split flange type halves clamp use plastic film bag inside;
2. sae split flange clamps flange stainless steel’ cartons with model, quantity, size mark;
3. solid clamps flange’s use pallet packaging;

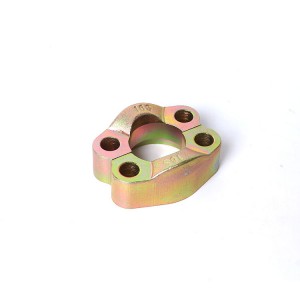

4. flange clamp 20 accepts customized pallet sizes;

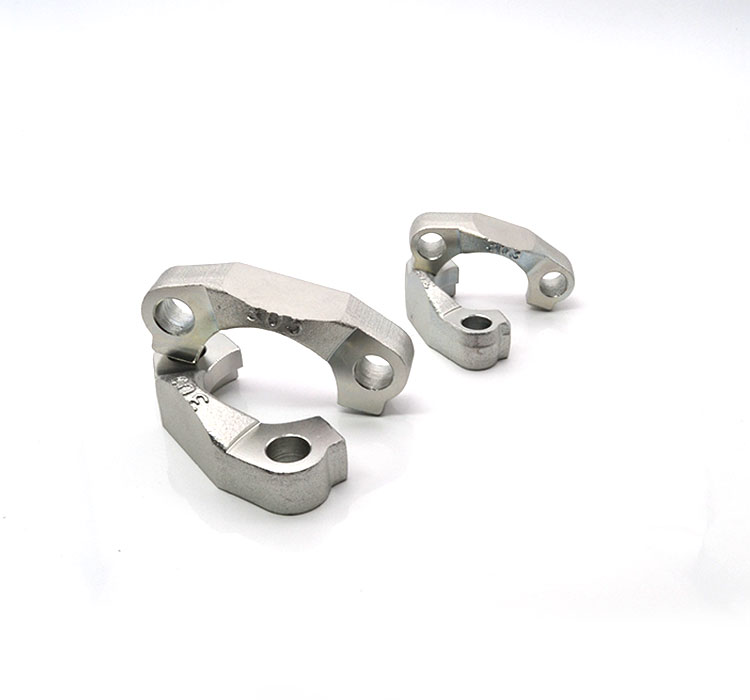

split flange clamp



FAQ

sae j518c flanges

Flange clip Related Products

sae whole flange clamps 6000psi

How to contact us?

For more information about the universal flange clamp, please contact us.

sae whole flange clamps 3000psi
